- 3.5寸電容觸摸屏

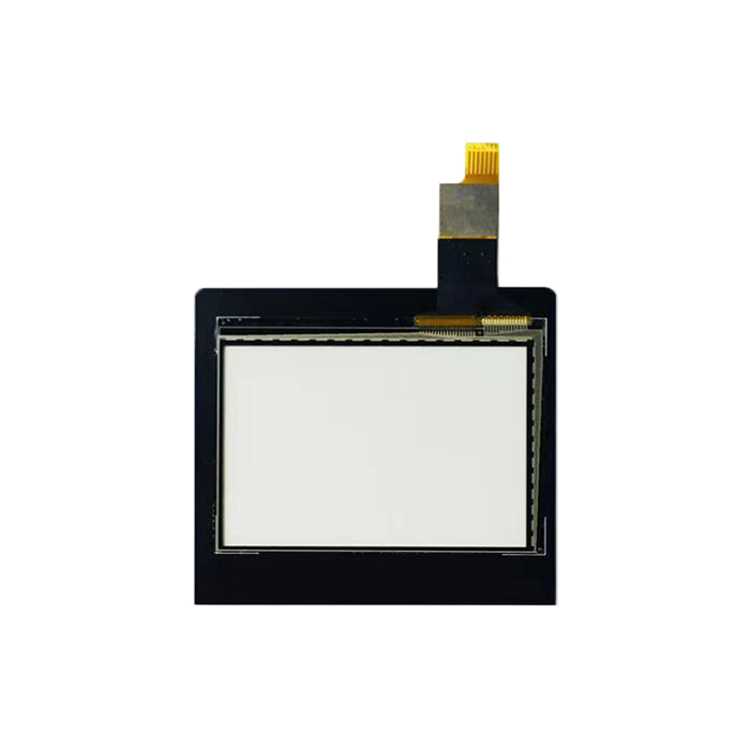

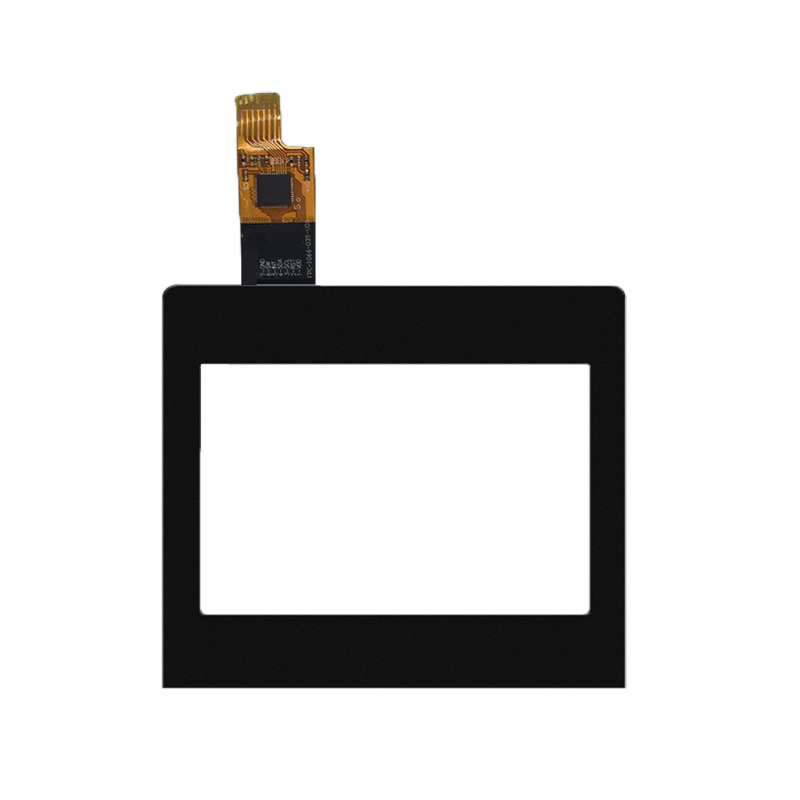

3.5寸電容顯示屏
工業級應用
詢盤咨詢
| Size | 3.5inch |
| Model Number | WT03501A |
| Active Area(mm) | 51.16*75.04 |
| View Area(mm) | 49.76*74.24 |
| Sensor OD(mm) | 54.36*79.74 |
| Lens OD(mm) | 56.96*85.44 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.8mm |
| Contoller | GT9157/FT/EETI |
| Touch points | 5 multi-point (Max 10 point) |
| Transmittance | ＞85% |
| Interface | IIC (USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
