產品展示當前所在位置: 首頁 > 產品展示 > 2.4-10.4寸電容式觸摸屏
- 2.4寸電容觸控屏

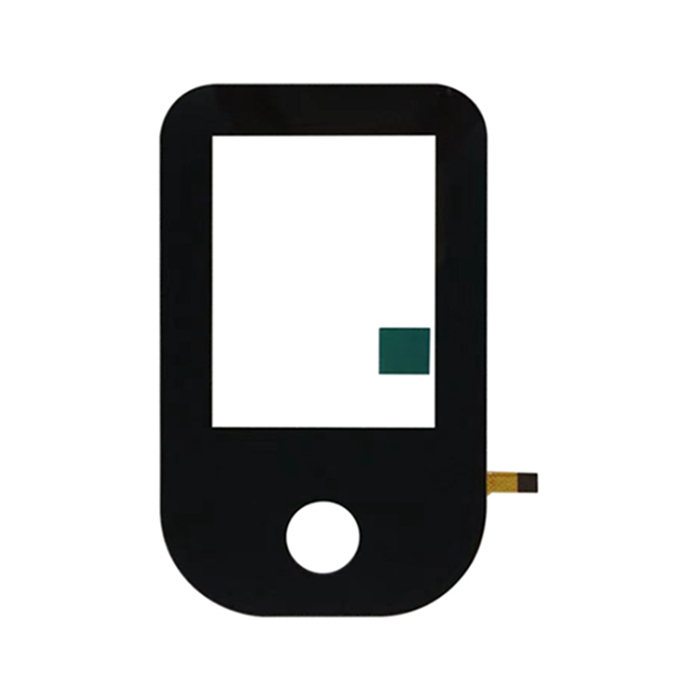

2.4寸電容觸摸屏
工業級應用
詢盤咨詢
| Size | 2.4inch |
| Model Number | WT02401A |
| Active Area(mm) | 39.72*51.96 |
| View Area(mm) | 38.72*50.96 |
| Sensor OD(mm) | 42.72*56.20 |
| Lens OD(mm) | 57.2*93.36 |
| Sensor Thickness(mm) | 0.55mm |
| Total thickness | 1.65mm |
| Contoller | GT9147/FT/EETI |
| Touch points | 5 multi-point (Max 10 point) |
| Transmittance | ＞85% |
| Interface | IIC (USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COF |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
