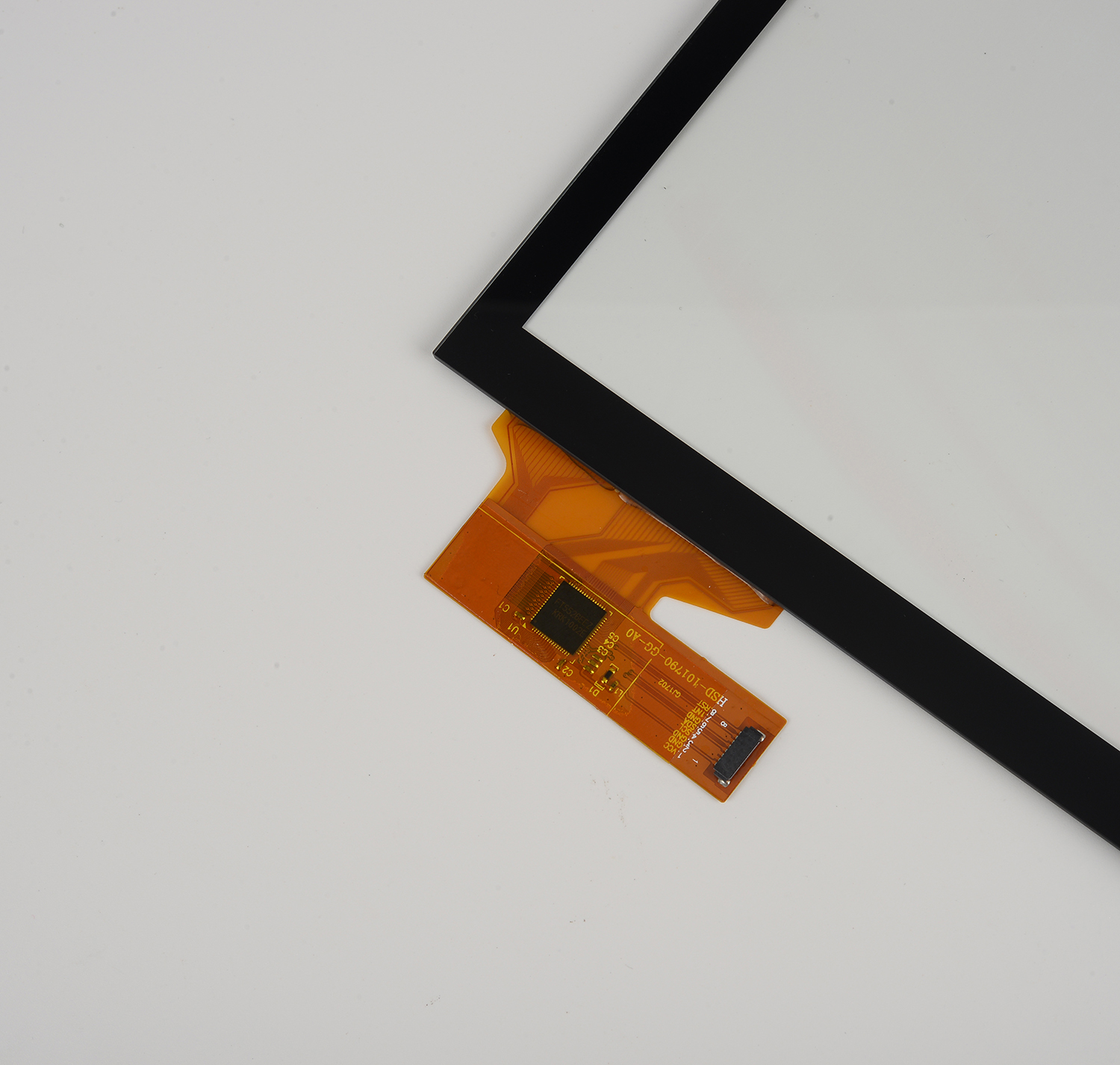

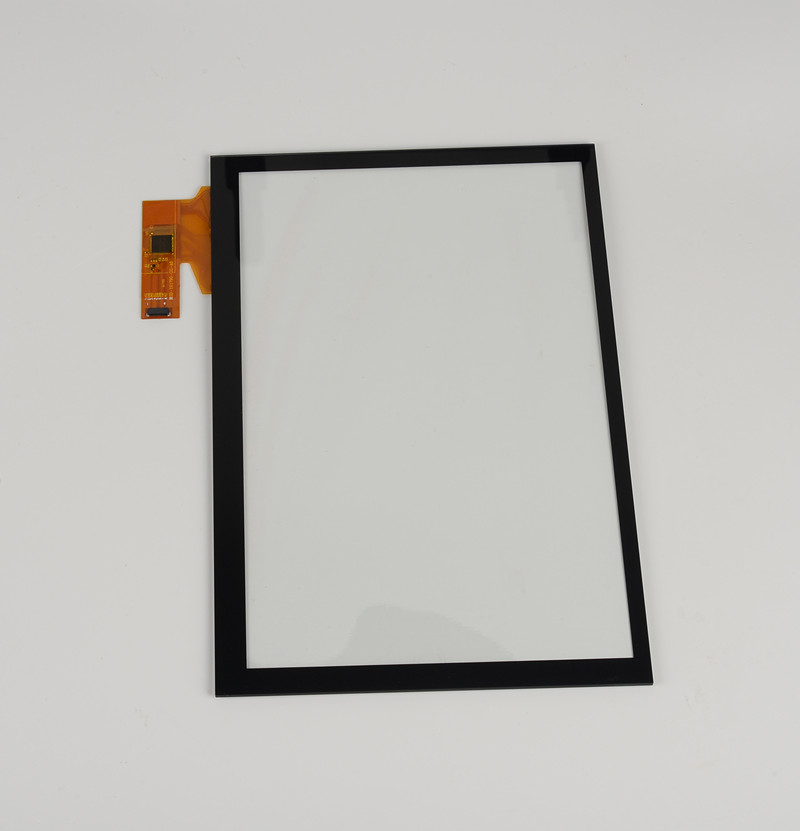

- 10.1寸電容觸控屏
10.1寸電容顯示屏
工業級應用
詢盤咨詢
| Size | 10.1 inch |
| Model Number | WT10101A |
| Active Area(mm) | 218.96*137.2 |
| View Area(mm) | 217.96*136.2 |
| Sensor OD(mm) | 227.96*148.6 |
| Lens OD(mm) | 257.06*170.2 |
| Sensor Thickness(mm) | 0.7mm |
| Total thickness | 2.0mm |
| Contoller | ILITEK 2511 |
| Touch points | 10 point |
| Transmittance | ＞85% |
| Interface | USB (IIC, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COB |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
