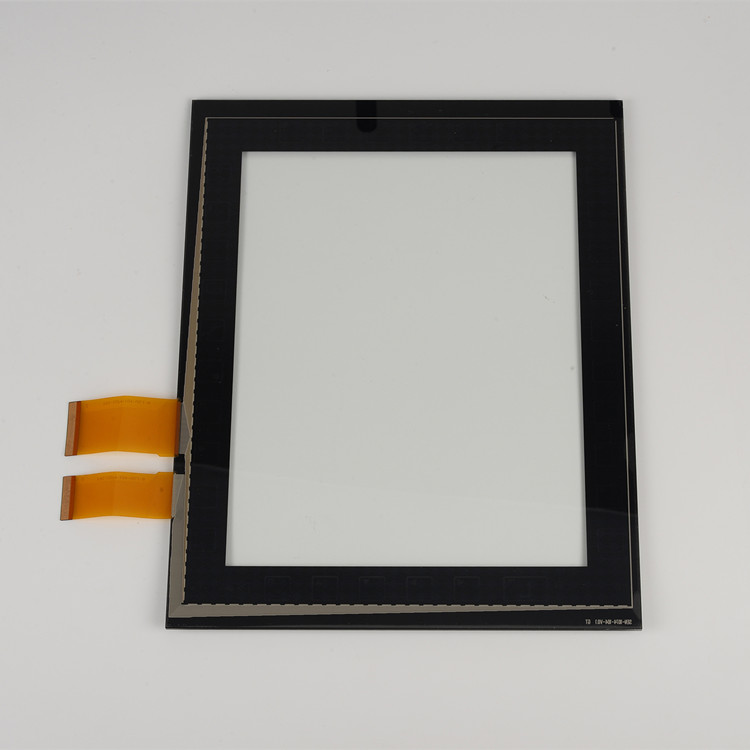

- 10.4寸電容觸控屏
10.4寸電容顯示屏
工業級應用
詢盤咨詢
| Size | 10.4 inch |
| Model Number | WT10401A |
| Active Area(mm) | 214.43*161.82 |
| View Area(mm) | 213.43*161.82 |
| Sensor OD(mm) | 223.83*173.22 |
| Lens OD(mm) | 226.93*177.17 |
| Sensor Thickness(mm) | 0.7mm |
| Total thickness | 2.05mm |
| Contoller | EXC84H4254STAG |
| Touch points | 10 point |
| Transmittance | ＞85% |
| Interface | USB |
| Structure | Cover glass + sensor glass |
| Touch solution | COB |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
