產(chǎn)品展示當前所在位置: 首頁 > 產(chǎn)品展示 > 11.6-21.5寸電容式觸摸屏

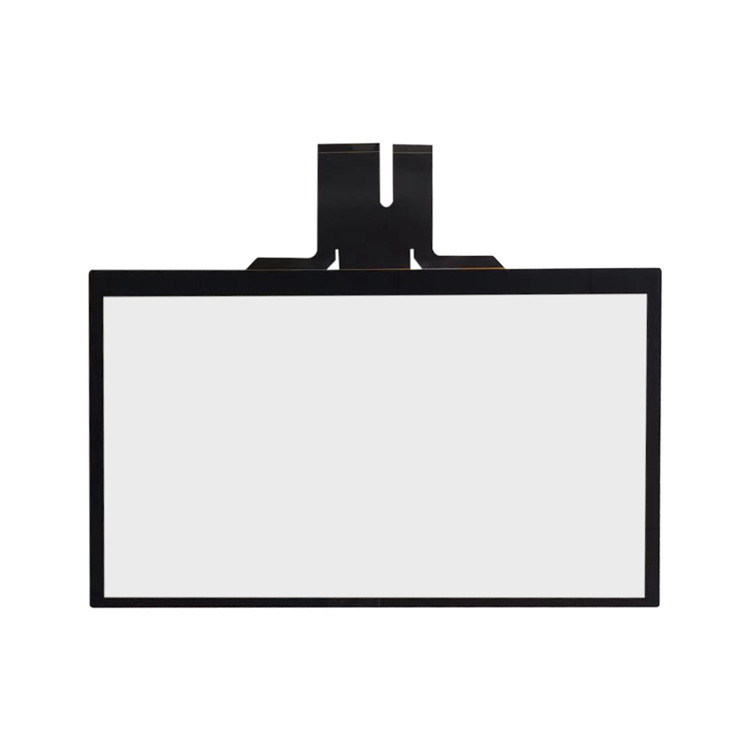

- 15.6寸電容觸控屏
15.6寸電容顯示屏
工業(yè)級應用
詢盤咨詢
| Size | 15.6 inch |
| Model Number | WT15601A |
| Window OD(mm) | 321*246 |
| Sensor OD(mm) | 319*243 |
| View Area(mm) | 306*230 |
| Sensor Thickness(mm) | 0.7mm |
| Total thickness | 2.05mm |
| Contoller | ILITEK/EETI |
| Touch points | 10 point |
| Transmittance | ＞85% |
| Interface | IIC(USB, RS232) |
| Structure | Cover glass + sensor glass |
| Touch solution | COB |
| Surface hardness | 6H |
| Operation Temperature | -20℃------70℃ |
| Storage Temperature | -30℃---------80℃ |
| Warranty | 12Months |
| Operate system | Win7,win8,win10,Android, Linux, Mac, etc. |
| Customized highly accepted | Wateproof/Gloves/AF/AG/AR special treatment |
